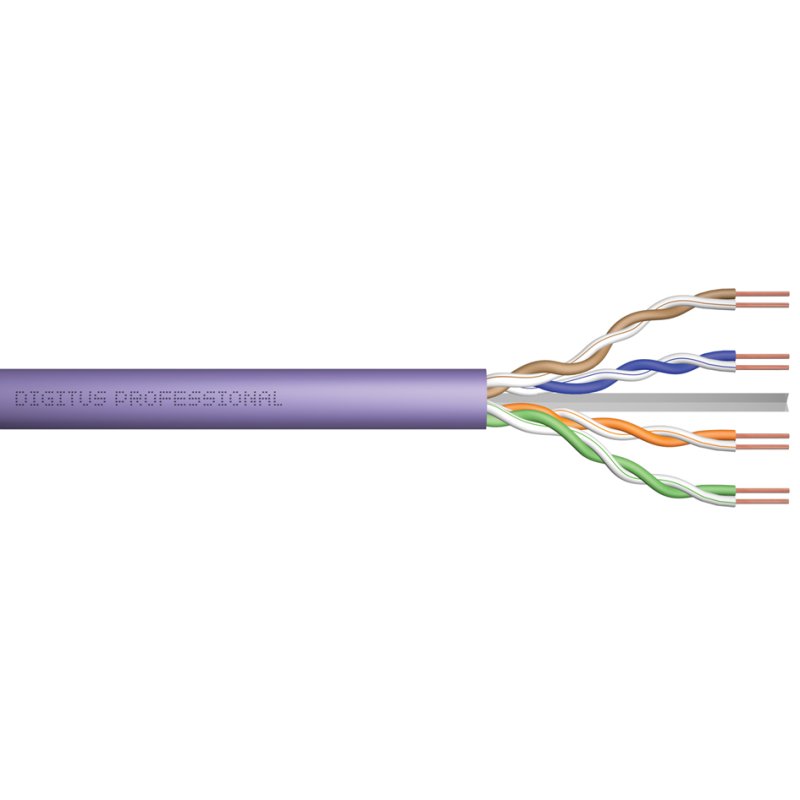

DIGITUS Cat6 installation cable, U/UTP, 305 metres
€181,50
incl. VAT
€150,00 excl. VAT (21%)
Price excluding shipping costs: €4,95 incl. VAT for orders under €49,95. From €49,95 we ship for free.
✗ Not in stock
Expected from supplier: week 47 (16 November - 22 November 2026)
Brand: DIGITUS
This DIGITUS product is a German discovery from the XtremeOffice.nl range and is rarely available elsewhere in the Netherlands.
| Article number | 11004592 |
|---|---|
| EAN | 4016032435785 |
| OEM number | DK-1614-VH-305 |
| Weight | 12,300 kg |
|---|---|
| Dimensions | B: 445 mm × H: 250 mm × D: 450 mm |
| Country of origin | China |
| Customs tariff (HS code) | 85444920 |
| VAT rate | 21% |
This is why Dex likes this article
This Cat6 cable lays the foundation for a fast and stable network throughout your premises. Thanks to the LSZH sheath you can install safely, and with 305 metres on the reel you can get started straight away without reordering along the way.
When do you choose this product?
When do you choose Cat6 installation cable?
Cat6 installation cable is used for setting up a fixed network infrastructure in offices, schools or other buildings. This cable is intended for permanent installation in walls, ceilings or cable trays. The U/UTP construction means the cable has no shielding, either per pair or overall.
Why 305 metres on a reel?
This cable is supplied on a reel of 305 metres. With this length you can get started in one go, without having to reorder part-way through.
Fire-safe LSZH sheath
The outer sheath of this cable is of the LSZH (Low Smoke Zero Halogen) type and complies with EN 50575 (Eca to B2ca). According to the specifications, the product has the European fire class D.
Practical installation tip
The purple colour (RAL 4005) helps identify specific network connections in complex installations. The conductors consist of bare copper wire, AWG 23/1. Install the cable at temperatures between 0°C and +50°C, and make sure that when pulling you do not exceed the maximum tensile load of 150 N.
Cat6 installation cable is used for setting up a fixed network infrastructure in offices, schools or other buildings. This cable is intended for permanent installation in walls, ceilings or cable trays. The U/UTP construction means the cable has no shielding, either per pair or overall.
Why 305 metres on a reel?
This cable is supplied on a reel of 305 metres. With this length you can get started in one go, without having to reorder part-way through.
Fire-safe LSZH sheath
The outer sheath of this cable is of the LSZH (Low Smoke Zero Halogen) type and complies with EN 50575 (Eca to B2ca). According to the specifications, the product has the European fire class D.
Practical installation tip
The purple colour (RAL 4005) helps identify specific network connections in complex installations. The conductors consist of bare copper wire, AWG 23/1. Install the cable at temperatures between 0°C and +50°C, and make sure that when pulling you do not exceed the maximum tensile load of 150 N.
Dex finds with this article
Specifications according to the manufacturer
Installation cable Cat.6, U/UTP, simplex, Dca
• Conductor: Bare copper wire, AWG 23/1
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted into 4 pairs
• Colour code: Blue-White, Orange-White, Green-White, Brown-White
• Shielding of individual pairs: None
• Overall shielding: None
• Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
• Outer sheath thickness (nominal): 0.5 mm (Eca); 0.6 mm (Dca); 1.0 mm (Cca); 1.0 mm (B2ca)
• Tensile load: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Transport and storage temperature range: -20°C to +60°C
• Operating temperature range: -20°C to +75°C
• Installation temperature range: 0°C to +50°C
• Simplex outer diameter (nominal): 6.1 mm (Eca); 6.3 mm (Dca); 6.8 mm (Cca); 6.8 mm (B2ca)
• Impedance: 100±15 Ohm @ 1 - 250 MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance asymmetry (pair-to-earth): 1.5 pF/m max. @ 1 kHz
• Insulation resistance: 5 GOhm x km min.
• Loop resistance: 147 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: CA-Type 3
• Phase delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Separation class: "b" in accordance with EN 50174-2
• NVP: 69%
• Sheath: LSOH
• Cable construction: 4 x 2 AWG 23/1, solid Twisted Pair
• Conductor: Bare copper wire, AWG 23/1
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted into 4 pairs
• Colour code: Blue-White, Orange-White, Green-White, Brown-White
• Shielding of individual pairs: None
• Overall shielding: None
• Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
• Outer sheath thickness (nominal): 0.5 mm (Eca); 0.6 mm (Dca); 1.0 mm (Cca); 1.0 mm (B2ca)
• Tensile load: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Transport and storage temperature range: -20°C to +60°C
• Operating temperature range: -20°C to +75°C
• Installation temperature range: 0°C to +50°C
• Simplex outer diameter (nominal): 6.1 mm (Eca); 6.3 mm (Dca); 6.8 mm (Cca); 6.8 mm (B2ca)
• Impedance: 100±15 Ohm @ 1 - 250 MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance asymmetry (pair-to-earth): 1.5 pF/m max. @ 1 kHz
• Insulation resistance: 5 GOhm x km min.
• Loop resistance: 147 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: CA-Type 3
• Phase delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Separation class: "b" in accordance with EN 50174-2
• NVP: 69%
• Sheath: LSOH
• Cable construction: 4 x 2 AWG 23/1, solid Twisted Pair
Specifications
Category
Cat.6
Shielding
U/UTP
Cable colour
violet
Length
305 m
European fire class
D
