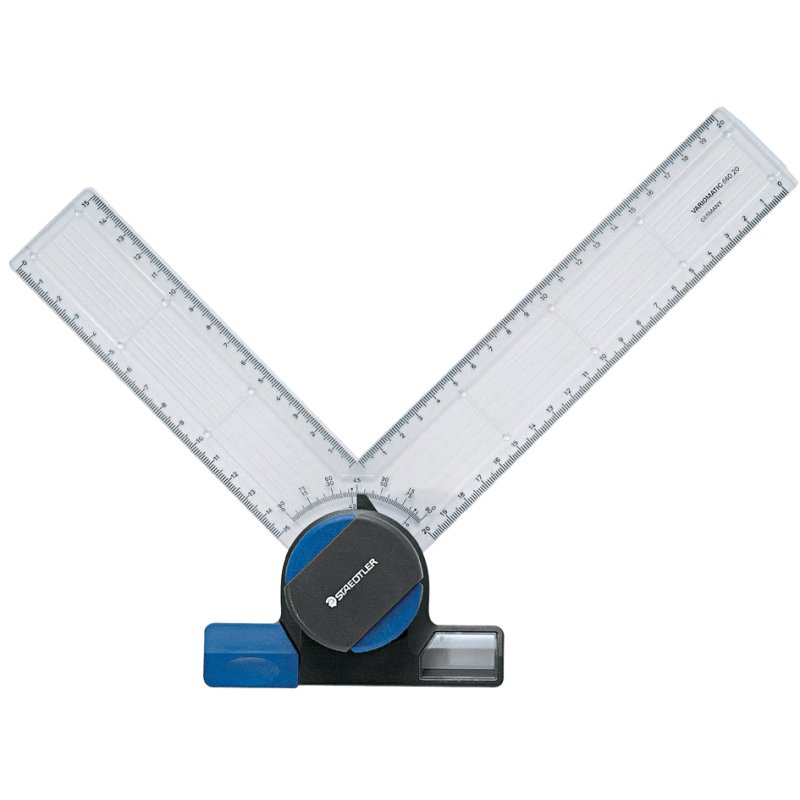

STAEDTLER Mars drawing head, for Mars drawing boards, one-handed operation, 15° graduated locking
€32,50
incl. VAT
€26,86 excl. VAT (21%)
Price excluding shipping costs: €4,95 incl. VAT for orders under €49,95. From €49,95 we ship for free.
✗ Not in stock
Expected from supplier: week 15 (12 April - 18 April 2027)
Brand: STAEDTLER
| Article number | 5653696 |
|---|---|
| EAN | 4007817601150 |
| OEM number | 660 20 |
| Weight | 0,250 kg |
|---|---|
| Dimensions | B: 310 mm × H: 40 mm × D: 240 mm |
| Country of origin | Duitsland |
| Customs tariff (HS code) | 90172010 |
| VAT rate | 21% |
This is why Dex likes this article
Professional drawing head that makes precise work possible. Operable with one hand and transparent rulers for perfect angle measurements. Ideal for technical drawing and design.
When do you choose this product?
What does this drawing head do?
This STAEDTLER drawing head is a precision instrument that you mount on a Mars drawing board for professional technical drawing. The device helps you draw exact angles and lines at various angles, which is essential for architectural drawings, technical sketches and construction drawings.
Why choose this specific model?
The one-handed operation makes this model particularly practical while drawing. You operate the drawing head with one hand via the Stop/Go push button, leaving your other hand free to draw. This ensures a much smoother workflow than traditional drawing heads that require two hands to operate.
15° grid adjustment for precise work
The grid adjustment works in steps of exactly 15 degrees, allowing you to quickly set the most common drawing angles. This system combines speed with precision: you simply click to the desired angle and the drawing head locks automatically. For intermediate angles, use the free-run function to set any arbitrary angle.
Transparent ruler arms with double-sided scales
The two transparent ruler arms have opposing scales on both sides, making reading and positioning easier. You always see exactly where you are drawing through the transparent material. The built-in hatching aid helps you create even hatching and shading in technical drawings. This drawing head is specifically designed for STAEDTLER Mars drawing boards.
This STAEDTLER drawing head is a precision instrument that you mount on a Mars drawing board for professional technical drawing. The device helps you draw exact angles and lines at various angles, which is essential for architectural drawings, technical sketches and construction drawings.
Why choose this specific model?
The one-handed operation makes this model particularly practical while drawing. You operate the drawing head with one hand via the Stop/Go push button, leaving your other hand free to draw. This ensures a much smoother workflow than traditional drawing heads that require two hands to operate.
15° grid adjustment for precise work
The grid adjustment works in steps of exactly 15 degrees, allowing you to quickly set the most common drawing angles. This system combines speed with precision: you simply click to the desired angle and the drawing head locks automatically. For intermediate angles, use the free-run function to set any arbitrary angle.
Transparent ruler arms with double-sided scales
The two transparent ruler arms have opposing scales on both sides, making reading and positioning easier. You always see exactly where you are drawing through the transparent material. The built-in hatching aid helps you create even hatching and shading in technical drawings. This drawing head is specifically designed for STAEDTLER Mars drawing boards.
Dex finds with this article
Specifications according to the manufacturer
**Mars Drawing Head**
• supplement to the Mars DIN A3 and DIN A4 drawing boards
• one-handed operation
• stop/go push button for free-angle locking and free movement
• 2 transparent ruler sections with two-sided counter-running scales
• hatching aid through parallel markings
• counter-running angle scales from 0° - 90° with additional 7° and 42° markings for dimetric projection
• grid setting in 15° increments
**Application examples:**
- drawing right angles without repositioning
• supplement to the Mars DIN A3 and DIN A4 drawing boards
• one-handed operation
• stop/go push button for free-angle locking and free movement
• 2 transparent ruler sections with two-sided counter-running scales
• hatching aid through parallel markings
• counter-running angle scales from 0° - 90° with additional 7° and 42° markings for dimetric projection
• grid setting in 15° increments
**Application examples:**
- drawing right angles without repositioning
