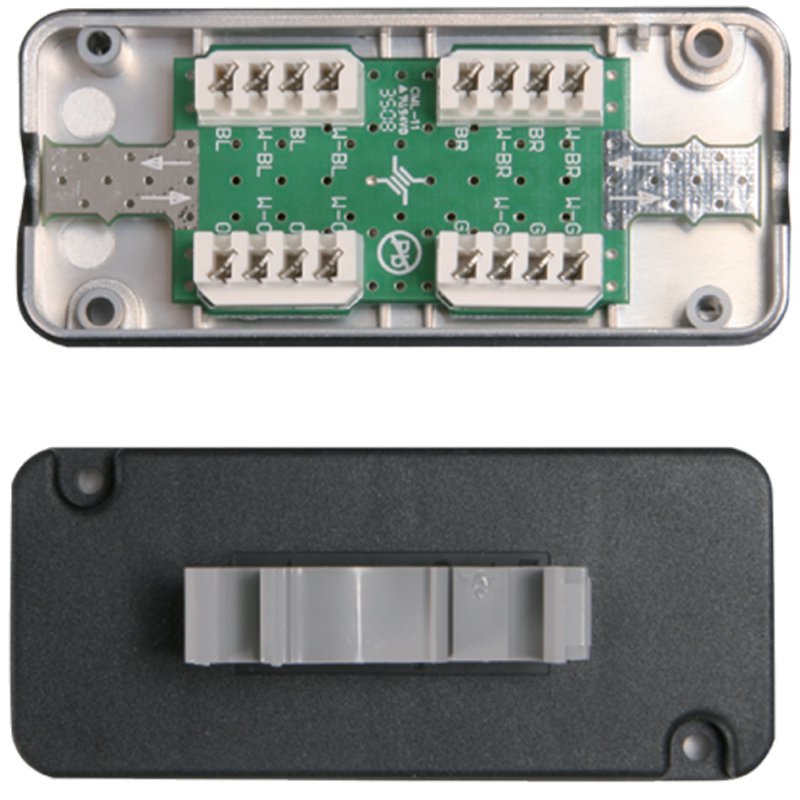

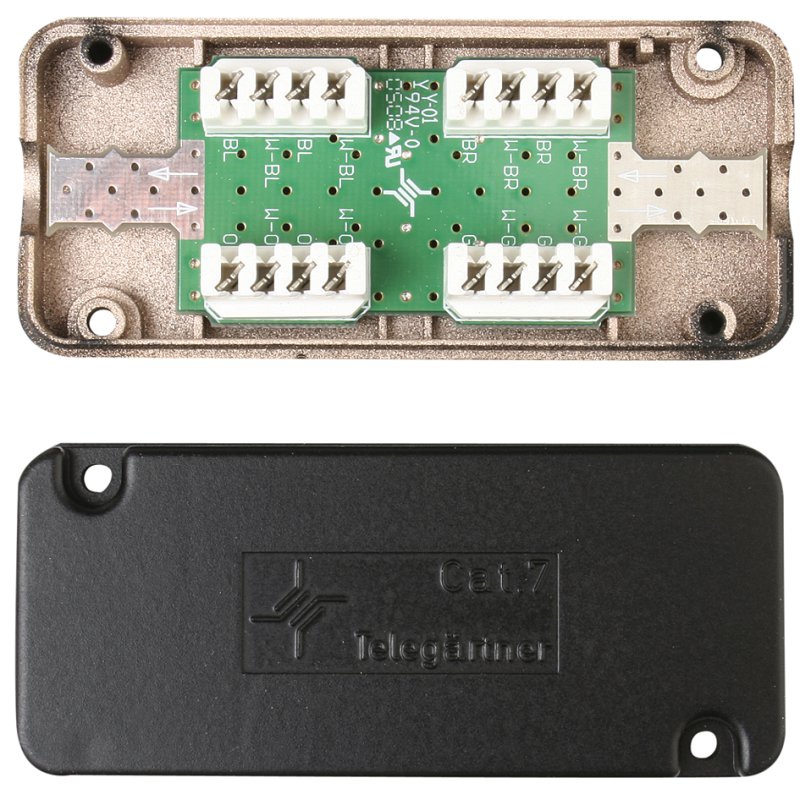

TELEGÄRTNER connection module category 7A, 8×8 cables
€23,05
incl. VAT
€19,05 excl. VAT (21%)
Price excluding shipping costs: €4,95 incl. VAT for orders under €49,95. From €49,95 we ship for free.
26%
goedkoper
than the average price on Google Shopping Average price of other shops offering this same item, gemeten op 01-10-2026
✓ In stock (8 pieces)
Ordered now, delivered Wednesday
📪 Through the letterbox - you don't have to be home!
⚠ Last stock — this item will not be reordered from the supplier. Once it's gone, it's gone.
Brand: TELEGÄRTNER
This TELEGÄRTNER product is a German discovery from the XtremeOffice.nl range and is rarely available elsewhere in the Netherlands.
| Article number | 11190640 |
|---|---|
| EAN | 4018359187682 |
| OEM number | 100023273 |
| Weight | 0,050 kg |
|---|---|
| Dimensions | B: 100 mm × H: 25 mm × D: 110 mm |
| Country of origin | QU |
| Customs tariff (HS code) | 85369010 |
| VAT rate | 21% |
This is why Dex likes this article
Handy solution for extending or re-routing cable when damaged. Thanks to the LSA-Plus insulation displacement terminals you connect quickly and reliably, and the EMC-safe construction ensures stable connections free from interference.
When do you choose this product?
What does this connection module do?
This TELEGÄRTNER connection module is a professional solution for joining network cabling when you are dealing with cable damage, cable extension or re-routing cables. It is an intermediate module that can connect shielded and unshielded cables to each other without having to install new cabling.
Why Category 7A for professional applications?
With Category 7A support, this module is suitable for the highest network speeds and future technologies. This specification makes it possible to repair or extend existing infrastructure without compromising the performance of your network.
LSA-Plus technology for reliable connections
The connection is made via LSA-Plus insulation displacement terminals, a proven technology that ensures stable contacts without soldering. This method provides a reliable connection suitable for professional network environments. The module is internally copper-plated, which contributes to optimal signal transmission.
EMC safety according to European standards
This connection module complies with the EMC safety standards EN 61000-6-1 and EN 61000-6-2, meaning that electromagnetic interference is minimised. The variable cable entry allows flexible installation, regardless of the direction from which your cables need to connect. This is particularly useful in renovations or in tight spaces where standard cable management is not possible.
This TELEGÄRTNER connection module is a professional solution for joining network cabling when you are dealing with cable damage, cable extension or re-routing cables. It is an intermediate module that can connect shielded and unshielded cables to each other without having to install new cabling.
Why Category 7A for professional applications?
With Category 7A support, this module is suitable for the highest network speeds and future technologies. This specification makes it possible to repair or extend existing infrastructure without compromising the performance of your network.
LSA-Plus technology for reliable connections
The connection is made via LSA-Plus insulation displacement terminals, a proven technology that ensures stable contacts without soldering. This method provides a reliable connection suitable for professional network environments. The module is internally copper-plated, which contributes to optimal signal transmission.
EMC safety according to European standards
This connection module complies with the EMC safety standards EN 61000-6-1 and EN 61000-6-2, meaning that electromagnetic interference is minimised. The variable cable entry allows flexible installation, regardless of the direction from which your cables need to connect. This is particularly useful in renovations or in tight spaces where standard cable management is not possible.
Dex finds with this article
Specifications according to the manufacturer
Simple Connection Module, Cat. 7A
• this connection module allows 8-core Twisted-Pair installation cables to be extended, re-routed or reconnected if damaged, without having to completely re-lay a cable segment up to 1000 MHz
• all common 4- and 8-core installation cables from AWG 24/1 - AWG 22/1 can be processed without any problems
• halogen-free
• against electromagnetic interference and radiation, the housing is provided with a copper coating on the inside
• transmission properties Cat.7A (deep) according to ISO/IEC 11801:2010 edition 3
• connection via LSA-Plus insulation displacement terminals on a common printed circuit board
• colour coding according to EIA/TIA 568A and B
• wire pairs can be fed to the terminal while maintaining the pair twist
• secure shield contacting with screw terminals directly on the printed circuit board
• variable cable entry
• separate cable strain relief using standard cable ties
• earthing option directly on the printed circuit board
• EMC-safe according to EN 61000-6-1 and EN 61000-6-2
• plastic housing, black
• dimensions: (W)84 x (D)36 x (H)22 mm
Art. No. 11195372: with DIN rail adapter for mounting on DIN rails according to DIN 60715
Note: both items have been reclassified from Cat.7 to Cat.7A(deep)
• a renewed check showed that the existing products also meet the requirements of Cat.7A(deep) (ISO/IEC 11801:2010)
• the product improvement is only visible in the printed LSA terminals and the marking on the housing
Application examples:
- ideal for cable re-routing, cable extension, and for repairing damage
• this connection module allows 8-core Twisted-Pair installation cables to be extended, re-routed or reconnected if damaged, without having to completely re-lay a cable segment up to 1000 MHz
• all common 4- and 8-core installation cables from AWG 24/1 - AWG 22/1 can be processed without any problems
• halogen-free
• against electromagnetic interference and radiation, the housing is provided with a copper coating on the inside
• transmission properties Cat.7A (deep) according to ISO/IEC 11801:2010 edition 3
• connection via LSA-Plus insulation displacement terminals on a common printed circuit board
• colour coding according to EIA/TIA 568A and B
• wire pairs can be fed to the terminal while maintaining the pair twist
• secure shield contacting with screw terminals directly on the printed circuit board
• variable cable entry
• separate cable strain relief using standard cable ties
• earthing option directly on the printed circuit board
• EMC-safe according to EN 61000-6-1 and EN 61000-6-2
• plastic housing, black
• dimensions: (W)84 x (D)36 x (H)22 mm
Art. No. 11195372: with DIN rail adapter for mounting on DIN rails according to DIN 60715
Note: both items have been reclassified from Cat.7 to Cat.7A(deep)
• a renewed check showed that the existing products also meet the requirements of Cat.7A(deep) (ISO/IEC 11801:2010)
• the product improvement is only visible in the printed LSA terminals and the marking on the housing
Application examples:
- ideal for cable re-routing, cable extension, and for repairing damage
Specifications
Version
screw-type
Manufacturer
Hazard information
No hazard classification applies according to the available manufacturer and supplier information.
This product contains no substances classified as hazardous under the CLP Regulation.
This product contains no substances classified as hazardous under the CLP Regulation.
