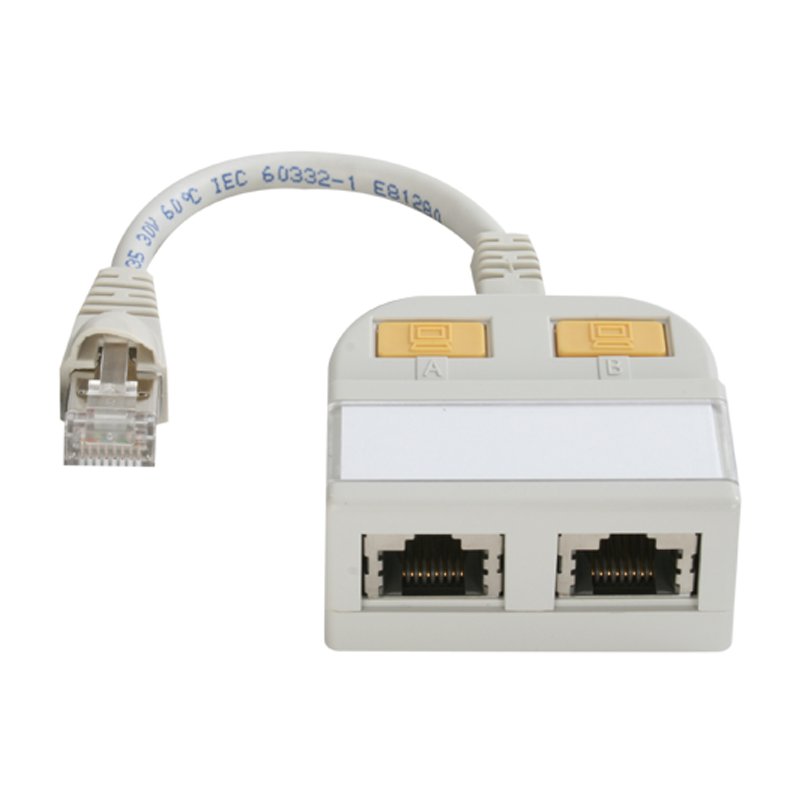

TELEGÄRTNER T-adapter with cable connection Category 5e, 2 x 10/100BaseT, unshielded
€19,32
incl. VAT
€15,97 excl. VAT (21%)
Price excluding shipping costs: €4,95 incl. VAT for orders under €49,95. From €49,95 we ship for free.
✗ Not in stock
Expected from supplier: week 13 (29 March - 4 April 2027)
Brand: TELEGÄRTNER
This TELEGÄRTNER product is a German discovery from the XtremeOffice.nl range and is rarely available elsewhere in the Netherlands.
| Article number | 11010436 |
|---|---|
| EAN | 4018359227371 |
| OEM number | 100023151 |
| Weight | 0,060 kg |
|---|---|
| Dimensions | B: 80 mm × H: 30 mm × D: 230 mm |
| Country of origin | QU |
| Customs tariff (HS code) | 85444210 |
| VAT rate | 21% |
This is why Dex likes this article
Handy T-adapter that lets you easily split one network connection into two 10Base-T connections. Compact, reliable and ready to use with your existing cabling infrastructure.
When do you choose this product?
What does this T-adapter do?
This T-adapter from TELEGÄRTNER splits one 8-core RJ45 output into two 4-core 10/100BaseT connections. This doubles the number of connections through cable sharing, without any changes to the existing network structure.
Why choose unshielded Category 5e?
This adapter is built in unshielded Category 5e and complies with ISO/IEC 11801. The plastic housing is light grey (RAL 7035), and the adapter has a 150 mm connecting cable with strain relief.
RJ45 compatibility and pin layout
The adapter has RJ45 plugs with latch protection. The outputs are marked with inserted colour codes for data and telephone. The pin assignment for both 10/100BaseT outputs is 1-2, 3-6 / 1-2, 3-6.
Practical installation tip
The manufacturer uses reference number 10023151 (previously J00029A0010). Use this number when ordering replacement parts or extensions for your network installation. The wiring diagram on the sticker on the underside of the adapter shows the connection layout.
This T-adapter from TELEGÄRTNER splits one 8-core RJ45 output into two 4-core 10/100BaseT connections. This doubles the number of connections through cable sharing, without any changes to the existing network structure.
Why choose unshielded Category 5e?
This adapter is built in unshielded Category 5e and complies with ISO/IEC 11801. The plastic housing is light grey (RAL 7035), and the adapter has a 150 mm connecting cable with strain relief.
RJ45 compatibility and pin layout
The adapter has RJ45 plugs with latch protection. The outputs are marked with inserted colour codes for data and telephone. The pin assignment for both 10/100BaseT outputs is 1-2, 3-6 / 1-2, 3-6.
Practical installation tip
The manufacturer uses reference number 10023151 (previously J00029A0010). Use this number when ordering replacement parts or extensions for your network installation. The wiring diagram on the sticker on the underside of the adapter shows the connection layout.
Dex finds with this article
Specifications according to the manufacturer
Modular T-Adapter - RJ45 Connector, Cat. 5e
• the adapter makes it possible to double the number of connections through cable sharing, without intervening in existing network structures
• for splitting one 8-core RJ45 outlet into 2 different 4-core applications: 2 x 10/100BaseT, 2 x Token Ring and 10/100BaseT / ISDN
• with 150 mm connection cable, strain relief
• RJ45 plug with locking lever protection
• outputs marked by inserted colour codes for data and telephone; labelling field with transparent window; wiring diagram sticker on the underside
• plastic housing in light grey (RAL 7035)
• Cat. 5 compliant with ISO / IEC 11801
• Pin assignment:
2 x 10/100BaseT: 1-2, 3-6 / 1-2, 3-6
2 x Token Ring: 3-6, 4-5 / 3-6, 4-5
1 x 10/100BaseT / 1 x ISDN: 1-2, 3-6 / 3-6, 4-5
• the adapter makes it possible to double the number of connections through cable sharing, without intervening in existing network structures
• for splitting one 8-core RJ45 outlet into 2 different 4-core applications: 2 x 10/100BaseT, 2 x Token Ring and 10/100BaseT / ISDN
• with 150 mm connection cable, strain relief
• RJ45 plug with locking lever protection
• outputs marked by inserted colour codes for data and telephone; labelling field with transparent window; wiring diagram sticker on the underside
• plastic housing in light grey (RAL 7035)
• Cat. 5 compliant with ISO / IEC 11801
• Pin assignment:
2 x 10/100BaseT: 1-2, 3-6 / 1-2, 3-6
2 x Token Ring: 3-6, 4-5 / 3-6, 4-5
1 x 10/100BaseT / 1 x ISDN: 1-2, 3-6 / 3-6, 4-5
Specifications
Version
2 x 10/100BaseT
